Speed Sensor Encoder 100라인 Code Disc

D-E-C-E-M-B-E-R 2018. 7. 30. 06:20
반응형


Photoelectric Speed Sensor Encoder Code Disc




https://www.aliexpress.com/item/Photoelectric-Speed-Sensor-Encoder-Coded-Disc-Code-Wheel-For-Freescale-Smart-Car-5V/32849669570.html?spm=2114.10010108.1000014.10.5d824237q5sg9r&gps-id=pcDetailBottomMoreOtherSeller&scm=1007.13338.106568.000000000000000&scm_id=1007.13338.106568.000000000000000&scm-url=1007.13338.106568.000000000000000&pvid=31e22228-52c3-4fbd-9176-ca5918c8b9c6

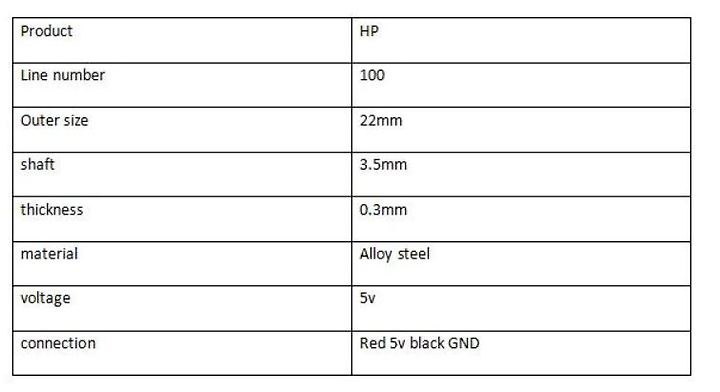

Code disk Technical parameters:



    • Brand new and high quality.
    • Number of lines: 100 lines
    • Outer diameter: 22mm
    • Bore Diameter: 3.5mm
    • Thickness: 0.3mm
    • Material: Steel
    • Production process: Laser Cutting
    • Speed of pipe technical parameters:
    • On the tube Manufacturer: Original

Product Introduction:
1.Specification:20*1.2mm
2.Resonance Frequency:1.70MHz
3.Resonance Impedance:<2 ohm
4.Coupling Coefficient:>52 %
5.Static Capacitance:1800pF
6.Atomization Amount:<380ml/h

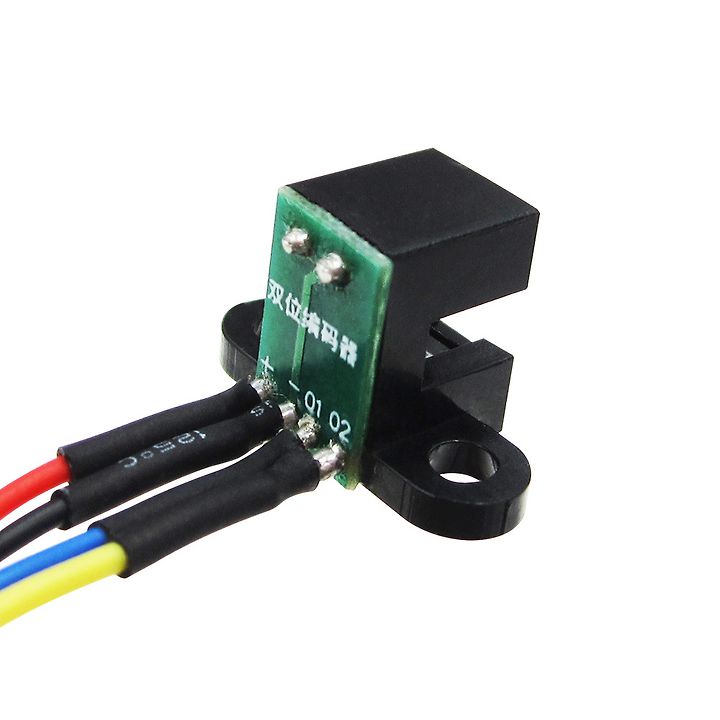

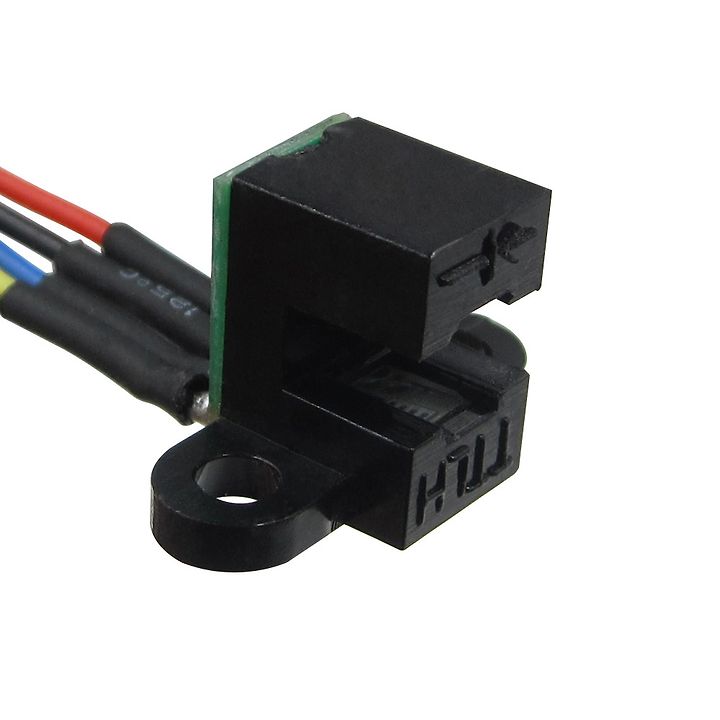

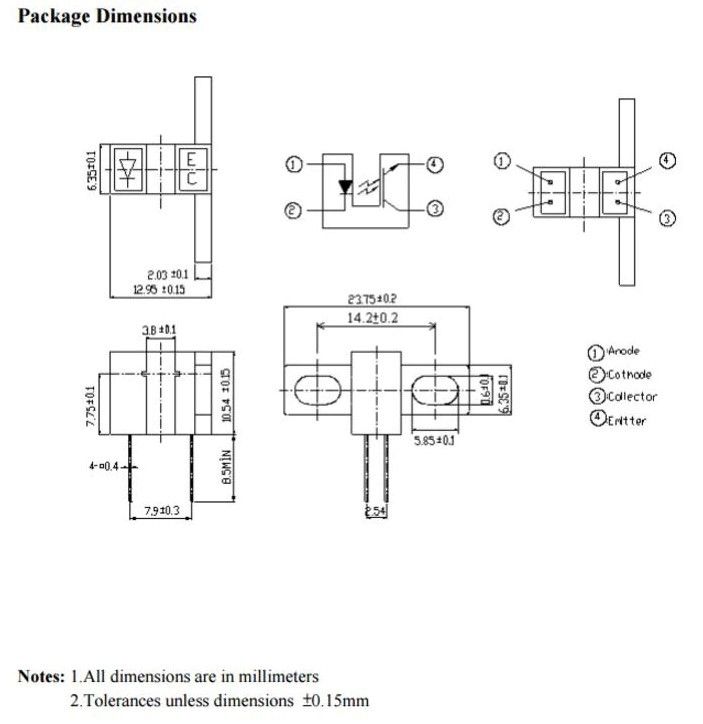

스피드 센서
    • Supply voltage: 3V (판매페이지에 5V로 되어 있음, 3V로도 작동함)
    • Wiring: Red-3V Black-GND

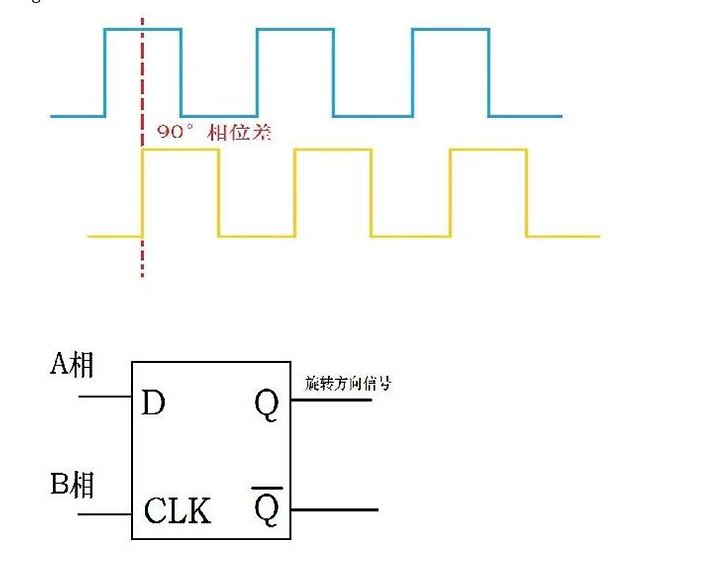

    • Output Signal: 5Vp-p two quadrature signal output
