LM2596S DC-DC 4.5-40V adjustable step-down power Supply

부품정보 2018. 10. 28. 08:57 Posted by D-E-C-E-M-B-E-R
반응형

https://www.aliexpress.com/item/Free-Shipping-1pcs-LM2596-LM2596S-DC-DC-4-5-40V-adjustable-step-down-power-Supply-module/32522381142.html?spm=2114.search0604.3.35.4d484cb5TmJ1sm&ws_ab_test=searchweb0_0,searchweb201602_2_10065_10068_318_319_317_5728815_10696_10084_10083_10618_452_10307_532_10712_10713_204_328_10059_10884_323_10887_100031_320_321_322_10103,searchweb201603_55,ppcSwitch_0&algo_expid=2bafd24f-dd8f-4349-97fb-5cce0c471a9c-8&algo_pvid=2bafd24f-dd8f-4349-97fb-5cce0c471a9c

https://www.aliexpress.com/item/4000260153088.html?spm=a2g0s.9042311.0.0.33db4c4dMIavQu

https://www.aliexpress.com/item/5pcs-lot-New-LM2596-DC-DC-Step-Down-Converter-Module-DC-4-0-40-to-1/32840488596.html?spm=a2g0s.9042311.0.0.3b524c4d7mlMtV

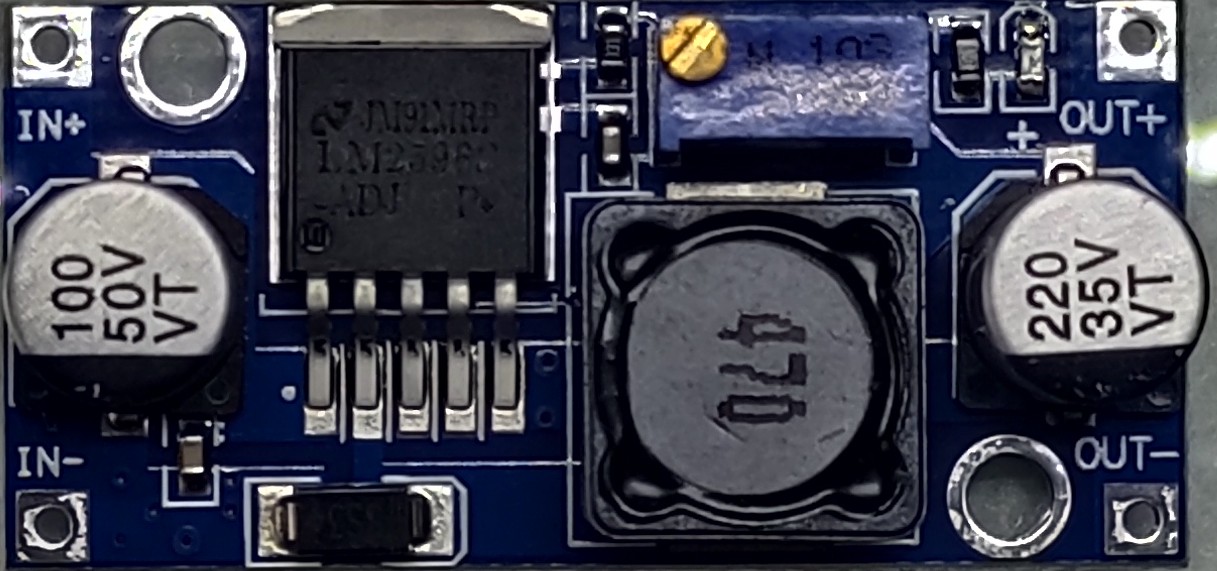

LM2596 LM2596S DC-DC 4.5-40V adjustable step-down power Supply module NEW ,High Quality

LM2596 DC-DC Step Down Converter Module 3A adjustable


 LM2596 DC-DC Buck module


입력 전압 : 4V ~ 35V

출력 전압 : 1.23V ~ 30V   (출력 전압은 입력 전압보다 낮아야 한다.)

Output Current :3A( Max)

Conversion efficiency:92%( MAX )

Output ripple: <30mV

Switching frequency: 150KHz

Working temperature: -forty Five~ +85

Size :43mm * 21mm * 14mm(Long*Width*Hight)

전원연결시 일반적으로 LED가 켜지지만 출력전압 2V 아래에서는 LED가 켜지지 않는다.

이 제품을 사용하려면 테스터기는 필수로 있어야 함


Features:


1. the range of input voltage: 3.2 V to 40 V dc

   - input voltage must be higher than to the output voltage of 1.5 V above.        Can't booster

2. the range of output voltage: 1.25 V dc to 35 V voltage adjustable

    high efficiency (92%) largest maximum output current is 3A.


Instructions:

1. Power (3-40V), power indicator light, the module is working properly.


2. Adjust the blue potentiometer knob (clockwise rotation generally boost,counter-clockwise rotationTurn down) and reach with a multimeter to monitor the output voltage required voltage.


Note:


  Current work long hours is recommended for use in less than 2.5A, while adding bulkHeat sink (10W output above),because it is the step-down module, in order to ensure stable output Set,please keep the minimum 1.5V differential.


알카노이드용 스피너 만들기

http://december.tistory.com/1427

5V 입력 1.5V 출력을 얻기 위해 사용



5V 입력 3V 출력을 얻기 위해 사용
